Summary

The Command pattern encapsulates actions as objects. Command objects allow for loosely coupled systems by separating the objects that issue a request from the objects that actually process the request. These requests are called events and the code that processes the requests are called event handlers.

Suppose you are building an application that supports the Cut, Copy, and Paste clipboard actions. These actions can be triggered in different ways throughout the app: by a menu system, a context menu (e.g. by right clicking on a textbox), or by a keyboard shortcut.

Command objects allow you to centralize the processing of these actions, one for each operation. So, you need only one Command for processing all Cut requests, one for all Copy requests, and one for all Paste requests.

Because commands centralize all processing, they are also frequently involved in handling Undo functionality for the entire application.

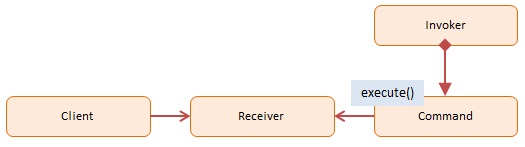

Diagram

Participants

JavaScript Code

In our example we have a calculator with 4 basic operations: add, subtract, multiply and divide. Each operation is encapsulated by a Command object.

The Calculator maintains a stack of commands. Each new command is executed and pushed onto the stack. When an undo request arrives, it simply pops the last command from the stack and executes the reverse action.

JavaScript's function objects (and callbacks) are native command objects. They can be passed around like objects; in fact, they are true objects. To learn more about JavaScript's eventing system and how callbacks work please review the Modern Patterns section.

The log function is a helper which collects and displays results.

function add(x, y) { return x + y; }
function sub(x, y) { return x - y; }
function mul(x, y) { return x * y; }
function div(x, y) { return x / y; }

var Command = function (execute, undo, value) {
    this.execute = execute;
    this.undo = undo;
    this.value = value;
}

var AddCommand = function (value) {
    return new Command(add, sub, value);
};

var SubCommand = function (value) {
    return new Command(sub, add, value);
};

var MulCommand = function (value) {
    return new Command(mul, div, value);
};

var DivCommand = function (value) {
    return new Command(div, mul, value);
};

var Calculator = function () {
    var current = 0;
    var commands = [];

    function action(command) {
        var name = command.execute.toString().substr(9, 3);
        return name.charAt(0).toUpperCase() + name.slice(1);
    }

    return {
        execute: function (command) {

            current = command.execute(current, command.value);
            commands.push(command);

            log.add(action(command) + ": " + command.value);
        },
        undo: function () {
            var command = commands.pop();
            current = command.undo(current, command.value);

            log.add("Undo " + action(command) + ": " + command.value);
        },
        getCurrentValue: function () {
            return current;
        }
    }
}

// log helper
var log = (function () {
    var log = "";
    return {
        add: function (msg) { log += msg + "\n"; },
        show: function () { alert(log); log = ""; }
    }
})();


function run() {

    var calculator = new Calculator();

    // issue commands
    calculator.execute(new AddCommand(100));
    calculator.execute(new SubCommand(24));
    calculator.execute(new MulCommand(6));
    calculator.execute(new DivCommand(2));

    // reverse last two commands
    calculator.undo();
    calculator.undo();

    log.add("\nValue: " + calculator.getCurrentValue());

    log.show();
}

JavaScript Optimized Code

The Namespace pattern is applied to keep the code out of the global namespace. Our namespace is named Patterns.Classic. A Revealing Module named Command returns (i.e. reveals) five public items: AddCommand, SubCommand, MulCommand, DivCommand and the Calculator constructor function. All other items are kept private in the module.

The Patterns object contains the namespace function which constructs namespaces non-destructively, that is, if a name already exists it won't overwrite it.

The log function is a helper which collects and displays results.

var Patterns = {
    namespace: function (name) {
        var parts = name.split(".");
        var ns = this;

        for (var i = 0, len = parts.length; i < len; i++) {
            ns[parts[i]] = ns[parts[i]] || {};
            ns = ns[parts[i]];
        }

        return ns;
    }
};

Patterns.namespace("Classic").Command = (function () {

    function add(x, y) { return x + y; }
    function sub(x, y) { return x - y; }
    function mul(x, y) { return x * y; }
    function div(x, y) { return x / y; }

    var Command = function (execute, undo, value) {
        this.execute = execute;
        this.undo = undo;
        this.value = value;
    }

    return {
        AddCommand: function (value) {
            return new Command(add, sub, value);
        },

        SubCommand: function (value) {
            return new Command(sub, add, value);
        },

        MulCommand: function (value) {
            return new Command(mul, div, value);
        },

        DivCommand: function (value) {
            return new Command(div, mul, value);
        },

        Calculator: function () {
            var current = 0;
            var commands = [];

            function action(command) {
                var name = command.execute.toString().substr(9, 3);
                return name.charAt(0).toUpperCase() + name.slice(1);
            }

            return {
                execute: function (command) {

                    current = command.execute(current, command.value);
                    commands.push(command);

                    log.add(action(command) + ": " + command.value);
                },
                undo: function () {
                    var command = commands.pop();
                    current = command.undo(current, command.value);

                    log.add("Undo " + action(command) + ": " + command.value);
                },
                getCurrentValue: function () {
                    return current;
                }
            }
        }
    };

})();

// log helper
var log = (function () {
    var log = "";
    return {
        add: function (msg) { log += msg + "\n"; },
        show: function () { alert(log); log = ""; }
    }
})();


function run() {

    var command = Patterns.Classic.Command;

    var calculator = new command.Calculator();

    // issue commands
    calculator.execute(new command.AddCommand(100));
    calculator.execute(new command.SubCommand(24));
    calculator.execute(new command.MulCommand(6));
    calculator.execute(new command.DivCommand(2));

    // reverse last two commands
    calculator.undo();
    calculator.undo();

    log.add("\nValue: " + calculator.getCurrentValue());

    log.show();
}
