Summary

The Iterator pattern allows clients to effectively loop over a collection of objects

A common programming task is to traverse and manipulate a collection of objects. These collections may be stored as an array or perhaps something more complex, such as a tree or graph structure. In addition, you may need to access the items in the collection in a certain order, such as, front to back, back to front, depth first (as in tree searches), skip evenly numbered objects, etc.

The Iterator design pattern solves this problem by separating the collection of objects from the traversal of these objects by implementing a specialized iterator.

Today, many languages have Iterators built-in by supporting 'for-each'-type constructs and IEnumerable and IEnumerator interfaces. However, JavaScript only supports basic looping in the form of for, for-in, while, and do while statements.

The Iterator pattern allows JavaScript developers to design looping constructs that are far more flexible and sophisticated.

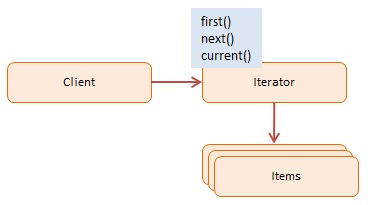

Diagram

Participants

JavaScript Code

The Iterator object maintains a reference to the collection and the current position. It also implements the 'standard' Iterator interface with methods like: first, next, hasNext, reset, and each.

Two looping methods are used: a built-in for loop and a newly created each method. The for loop uses the first, hasNext, and next methods to control the iteration. The each method does internally exactly the same (i.e. runs a for loop), but to the client the syntax has been greatly simplified.

The log function is a helper which collects and displays results.

var Iterator = function(items) {
    this.index = 0;
    this.items = items;
}

Iterator.prototype = {
    first: function() {
        this.reset();
        return this.next();
    },
    next: function() {
        return this.items[this.index++];
    },
    hasNext: function() {
        return this.index <= this.items.length;
    },
    reset: function() {
        this.index = 0;
    },
    each: function(callback) {
        for (var item = this.first(); this.hasNext();
                                      item = this.next()) {
            callback(item);
        }
    }
}

// log helper
var log = (function() {
    var log = "";
    return {
        add: function(msg) { log += msg + "\n"; },
        show: function() { alert(log); log = ""; }
    }
})();


function run() {

    var items = ["one", 2, "circle", true, "Applepie"];
    var iter = new Iterator(items);

    // using for loop

    for (var item = iter.first(); iter.hasNext();
                                  item = iter.next()) {
        log.add(item);
    }

    log.add("");

    // using Iterator's each method

    iter.each(function(item) {
        log.add(item);
    });

    log.show();
}

JavaScript Optimized Code

The Namespace pattern is applied to keep the code out of the global namespace. Our namespace is named Patterns.Classic. A Revealing Module named Iterator returns (i.e. reveals) only a single item: the Iterator and by association its prototype object.

The Patterns object contains the namespace function which constructs namespaces non-destructively, that is, if a name already exists it won't overwrite it.

The log function is a helper which collects and displays results.

var Patterns = {
    namespace: function (name) {
        var parts = name.split(".");
        var ns = this;

        for (var i = 0, len = parts.length; i < len; i++) {
            ns[parts[i]] = ns[parts[i]] || {};
            ns = ns[parts[i]];
        }

        return ns;
    }
};

Patterns.namespace("Classic").Iterator = (function () {

    var Iterator = function (items) {
        this.index = 0;
        this.items = items;
    }

    Iterator.prototype = {
        first: function () {
            this.reset();
            return this.next();
        },
        next: function () {
            return this.items[this.index++];
        },
        hasNext: function () {
            return this.index <= this.items.length;
        },
        reset: function () {
            this.index = 0;
        },
        each: function (callback) {
            for (var item = this.first(); this.hasNext();
                                          item = this.next()) {
                callback(item);
            }
        }
    }

    return {
        Iterator: Iterator
    }

})();

// log helper
var log = (function () {
    var log = "";
    return {
        add: function (msg) { log += msg + "\n"; },
        show: function () { alert(log); log = ""; }
    }
})();


function run() {

    var items = ["one", 2, "circle", true, "Applepie"];
    var iter = new Patterns.Classic.Iterator.Iterator(items);

    // using for loop

    for (var item = iter.first(); iter.hasNext();
                                  item = iter.next()) {
        log.add(item);
    }

    log.add("");

    // using Iterator's each method

    iter.each(function (item) {
        log.add(item);
    });

    log.show();
}
