Summary

The Memento pattern provides temporary storage as well as restoration of an object. The mechanism in which you store the object’s state depends on the required duration of persistence, which may vary.

You could view a database as an implementation of the Memento design pattern in which objects are persisted and restored. However, the most common reason for using this pattern is to capture a snapshot of an object’s state so that any subsequent changes can be undone easily if necessary.

Essentially, a Memento is a small repository that stores an object’s state. Scenarios in which you may want to restore an object into a state that existed previously include: saving and restoring the state of a player in a computer game or the implementation of an undo operation in a database.

In JavaScript Mementos are easily implemented by serializing and de-serializing objects with JSON.

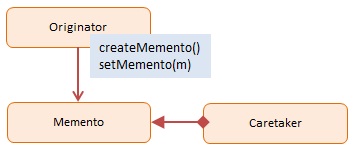

Diagram

Participants

JavaScript Code

The sample code creates two persons named Mike and John are created using the Person constructor function. Next, their mementos are created which are maintained by the CareTaker object.

We assign Mike and John bogus names before restoring them from their mementos. Following the restoration we confirm that the person objects are back to their original state with valid names.

The Memento pattern itself with CareTaker etc. is rarely used in JavaScript. However, JSON is a highly effective data format that is extremely useful in many different data exchange scenarios.

var Person = function (name, street, city, state) {
    this.name = name;
    this.street = street;
    this.city = city;
    this.state = state;
}

Person.prototype = {
    hydrate: function () {

        var memento = JSON.stringify(this);
        return memento;
    },
    dehydrate: function (memento) {

        var m = JSON.parse(memento);
        for (var prop in m) this[prop] = m[prop];
    }
}

var CareTaker = function () {

    this.mementos = {};

    this.add = function (key, memento) {
        this.mementos[key] = memento;
    },
    this.get = function (key) {
        return this.mementos[key];
    }
}

function run() {

    var mike = new Person("Mike Foley", "1112 Main", "Dallas", "TX");
    var john = new Person("John Wang", "48th Street", "San Jose", "CA");

    var caretaker = new CareTaker();

    // save state

    caretaker.add(1, mike.hydrate());
    caretaker.add(2, john.hydrate());

    // mess up their names

    mike.name = "King Kong";
    john.name = "Superman";

    // restore original state

    mike.dehydrate(caretaker.get(1));
    john.dehydrate(caretaker.get(2));

    log.add(mike.name);
    log.add(john.name);

    log.show();
}

JavaScript Optimized Code

The Namespace pattern is applied to keep the code out of the global namespace. Our namespace is named Patterns.Classic. A Revealing Module named Memento returns (i.e. reveals) only a single item: the makeHydratable method.

In this implementation there is no need for a Caretaker; we simply added the hydrated Memento dynamically to an object. Then in the dehydrate method, the values are simply written back to the instance itself.

The Patterns object contains the namespace function which constructs namespaces non-destructively, that is, if a name already exists it won't overwrite it.

The log function is a helper which collects and displays results.

var Patterns = {
    namespace: function (name) {
        var parts = name.split(".");
        var ns = this;

        for (var i = 0, len = parts.length; i < len; i++) {
            ns[parts[i]] = ns[parts[i]] || {};
            ns = ns[parts[i]];
        }

        return ns;
    }
};

Patterns.namespace("Classic").Memento = (function () {

    var hydratable = {
        hydrate: function () {
            this.memento = JSON.stringify(this);
        },
        dehydrate: function () {

            if (this.memento) {
                var m = JSON.parse(this.memento);
                for (var prop in m) this[prop] = m[prop];

                this.memento = null;
            }
        },

        memento: null
    }

    var makeHydratable = function (obj) {
        for (var prop in hydratable) {
            obj[prop] = hydratable[prop];
        }
        return obj;
    };

    return {
        makeHydratable: makeHydratable
    }


})();

// log helper
var log = (function () {
    var log = "";
    return {
        add: function (msg) { log += msg + "\n"; },
        show: function () { alert(log); log = ""; }
    }
})();

function run() {

    var Person = function (name, street, city, state) {
        this.name = name;
        this.street = street;
        this.city = city;
        this.state = state;
    }

    var mike = new Person("Mike Foley", "1112 Main", "Dallas", "TX");
    var john = new Person("John Wang", "48th Street", "San Jose", "CA");

    Patterns.Classic.Memento.makeHydratable(mike);
    Patterns.Classic.Memento.makeHydratable(john);

    // save state

    mike.hydrate();
    john.hydrate();

    // mess up their names

    mike.name = "King Kong";
    john.name = "Superman";

    // restore original state

    mike.dehydrate();
    john.dehydrate();

    log.add(mike.name);
    log.add(john.name);

    log.show();
}
